Digitally Controlled Delay Lines are electronic devices capable of providing precise, programmable time delay control for RF/microwave signals. By integrating multiple delay cells and high-speed RF switches, they switch the input signal between transmission paths of different lengths under digital control signals, thereby obtaining a preset delay at the output. Compared with traditional phase shifters, digitally controlled delay lines provide "true time delay", effectively avoiding the beam squint effect that occurs in wideband signals during beam scanning. They are key components for implementing wideband phased arrays, high-resolution radars, and high-precision measurement systems. The following is an introduction to the features and applications of 0.1~18GHz digitally controlled delay lines.
Features:
1. Ultra-wideband operating frequency
Operating frequency covers 0.1~18GHz, spanning from L-band to Ku-band, meeting the signal processing requirements of most RF/microwave systems. Through complementary compensation design of internal delay cells, the impact of frequency shift on delay performance is effectively suppressed, maintaining stable delay characteristics over the full band.
2. High-precision programmable delay
Digital control enables precise delay adjustment, with delay step as low as 1.25ps and total delay range up to 78.75ps. Typical delay accuracy reaches ±4ps, satisfying applications requiring extremely high time resolution.
3. Low insertion loss and good VSWR
Maintains low insertion loss over the full band, beneficial for system link budget and signal integrity.
4. Miniaturization and high integration
Advanced microwave transmission line technology and semiconductor manufacturing processes integrate traditionally bulky cable or coaxial delay lines into a compact package, offering stable delay, strong anti-interference capability, and easy system integration, overcoming the shortcomings of traditional delay lines such as large size, high loss, and severe dispersion.
Applications:
1. Wideband phased array radar
In wideband phased array radar systems, the antenna beam pointing drifts with operating frequency due to aperture effects. Digitally controlled delay lines provide true time delay compensation, effectively eliminating beam squint and improving radar ranging accuracy and angular resolution. They are core components in the RF front-end subarrays of phased array radars.
2. Communication systems and signal processing
In digital communications, satellite communications, and electronic warfare systems, digitally controlled delay lines compensate for propagation delay differences between different signal channels, achieving time alignment, clock synchronization, and phase correction, improving system bit error rate performance and signal quality.
3. Radar calibration and testing
In laboratory testing and radar system calibration, digitally controlled delay lines serve as high-precision time reference sources, simulating echo signals from targets at different distances, supporting radar ranging performance verification, antenna pattern testing, and system self-check functions.
4. Electronic warfare and reconnaissance systems
In electronic reconnaissance and jamming systems, digitally controlled delay lines can generate time differences to enable signal storage and forwarding, coherent jamming generation, and time difference of arrival (TDOA) measurement, making them indispensable precision time delay control components in electronic warfare equipment.
5. T/R modules
In T/R modules of phased array antennas, digitally controlled delay lines work with beam steering system codes to achieve precise timing control of signals for each array element, thereby accomplishing beam forming and fast beam scanning. Such applications require delay lines with wide bandwidth, low insertion loss, good phase consistency, and high-speed channel switching capability.

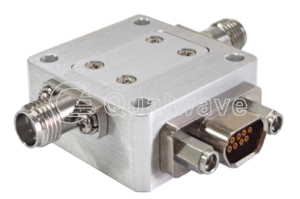

Qualwave Inc. provide broadband, high dynamic range digitally controlled delay lines with frequencies up to 18GHz. This article introduces a digitally controlled delay line with a frequency range of 0.1~18GHz, a delay range of 1.25~78.75ps, a step of 1.25ps.
1. Electrical Characteristics
Frequency: 0.1~18GHz
Insertion Loss: 10dB typ.
Step: 1.25ps
Delay Range: 1.25~78.75ps
Delay Accuracy: ±4ps typ.
Input Power (P1dB): 24dBm typ.
Input VSWR: 1.8 typ.
Switching Time: 25ns typ.
Voltage/Current: -5V @6mA typ.
Logic Input: On: 1(+2.3~+5V)
Off: 0(0~+0.8V)
2. Absolute Maximum Ratings*1
Input Power: +25dBm
Supply Voltage: -5.3V
[1] Permanent damage may occur if any of these limits are exceeded.
3. Mechanical Properties
Size*2: 26*26*12mm
1.024*1.024*0.472in
RF Connectors: SMA Female
Power Supply & Control Interface Connectors: J30J-9ZKP
Mounting: 4-Φ2.8mm through-hole
[2] Exclude connectors.
4. Pin Numbering
| Pin | Function | Pin | Function |
| 1 | C1: 1.25ps | 6 | C6: 40ps |
| 2 | C2: 2.5ps | 7 | NC |
| 3 | C3: 5ps | 8 | VEE |
| 4 | C4: 10ps | 9 | GND |
| 5 | C5: 20ps |
5. Environment
Operating Temperature: -45~+85℃
Non-operating Temperature: -55~+125℃

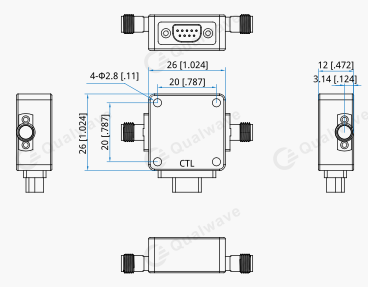

6. Outline Drawings
Unit: mm [in]
Tolerance: ±0.2mm [±0.008in]
7. How To Order
If you are interested in this product, please feel free to contact us. We are happy to provide more valuable information.
