32-Way Power Divider, 0.95~2.15GHz, 30W

A 32-way RF power divider is a passive device that evenly distributes one RF signal to 32 output signals. Its features and applications are as follows:

Features:

1. High power allocation capability: Capable of evenly distributing input RF signals to 32 output ports, requiring high power capacity to cope with high-power input scenarios such as base stations or radar systems.
2. High isolation: Each output port has a high degree of isolation to avoid mutual interference between signals.
3. Good impedance matching: It can provide good 50Ω impedance matching, reduce signal reflection, and improve transmission efficiency.
4. High power capacity: Some 32-way RF power dividers can withstand high power and are suitable for high-power applications.
5. Phase and amplitude consistency: The signal phase and amplitude consistency of each output port is good, suitable for applications that require high signal quality.

Applications:

1. Communication system: It can be used to distribute signals to multiple antennas, achieve gain and fault tolerance functions of multi antenna systems, and improve communication coverage and reliability.
2. Radar and electronic warfare: Allocate signals to hundreds or thousands of antenna units, support beamforming and fast scanning; Generation and distribution of multi-channel interference signals.
3. Testing equipment: Multiple devices under test (DUT) are simultaneously excited in multi-channel testing equipment to improve testing efficiency, such as RF chip or antenna array testing.
4. Laboratory research: Large scale MIMO research, quantum communication multi-channel synchronization experiments, or array signal processing in radio astronomy.
The 32-way RF power divider, with its multi-channel distribution capability, is widely used in high-density signal processing scenarios. However, its design and manufacturing require balancing losses, isolation, volume, and cost, posing high technical challenges.

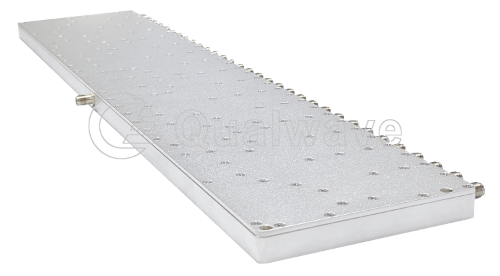

Qualwave Inc. provides broadband and high reliability 32-way power dividers/combiners at frequencies from DC to 44GHz, and the power is up to 640W. This article introduces a 32-way power divider with frequency coverage of 0.95~2.15GHz.
