IQ Mixers, also known as quadrature mixers or vector mixers, are microwave frequency conversion devices based on a phase-quadrature vector processing architecture. Internally, they integrate two closely matched double-balanced mixer cores, a 90° quadrature hybrid coupler, and an in-phase power divider/combiner network, enabling simultaneous processing of the in-phase and quadrature components of the input signal. Unlike traditional single-ended or double-balanced mixers that only perform simple frequency translation, IQ Mixers preserve the full vector information of the signal—namely amplitude and phase—which endows them with a unique inherent image frequency rejection capability. In conventional down-conversion, the mixing process inevitably generates both the desired sideband and the image sideband. Traditional approaches require high-selectivity pre-selection filters at the RF front end to reject the image, which not only introduces additional insertion loss but also increases system size and cost. IQ Mixers, by leveraging the inherent 90° phase difference between the I and Q paths, achieve image cancellation through internal vector summation, enabling image-reject down-conversion without external filtering. In up-conversion applications, they function as single-sideband modulators, outputting only the desired sideband and thus improving spectral efficiency. This "filtering accomplished within the chip" characteristic makes IQ Mixers indispensable core analog components in modern broadband communications, radar, and test systems.
Characteristics:
1. Broadband frequency coverage
The RF and LO ports operate across the full 5GHz to 11GHz range, spanning from C-band through part of X-band. This frequency range covers a wide variety of mainstream commercial and military communications, radar, and remote sensing applications, offering excellent band adaptability.
2. Built-in image rejection
With precision-engineered quadrature splitting networks and highly symmetric mixer diode cores, the device delivers superior image rejection. This built-in capability enables a clean spectrum output without the need for external image-reject filters, significantly simplifying RF front-end architecture.
3. Superior dynamic range and linearity
Conversion loss is maintained at a low level, while the device exhibits favorable input compression point and third-order intercept point performance. This ensures low-distortion operation even under strong-signal or wide-dynamic-range conditions, making it especially suitable for frequency conversion of high-order digitally modulated signals.
4. High port-to-port isolation
Signal leakage from the LO port to other ports is kept to a minimum, effectively preventing LO energy from contaminating the RF or IF paths. This avoids unwanted spurious responses and reduces the complexity of system-level electromagnetic compatibility design.
5. Excellent amplitude and phase balance
The amplitude and phase deviations between the I and Q paths are tightly controlled. This balance is a prerequisite for maintaining high image rejection and is a direct reflection of mature device fabrication processes and consistent manufacturing quality.
6. Diverse packaging options and reliability
Available in multiple form factors including coaxial connectorized packages and surface-mount miniature packages to accommodate varying integration requirements. Coaxial versions are typically housed in hermetically sealed metal enclosures, meeting stringent long-term reliability standards for harsh operating environments.
Applications:
1. Point-to-point microwave transmission systems
Serving as the core up-converter or down-converter in microwave backhaul equipment, leveraging image rejection to eliminate intermediate filtering stages while supporting multi-carrier and high-order modulation schemes with excellent linearity.
2. Satellite communications
Deployed in the RF front ends of C-band and X-band satellite uplink/downlink chains, ensuring stable and reliable frequency conversion across wide temperature ranges and under complex vibration conditions.
3. Radar and electronic warfare systems
Used in pulsed radars, continuous-wave radars, and electronic support/electronic attack systems, where they preserve the phase information of echo signals to deliver high-quality IF signals for subsequent coherent processing and target identification.
4. High-end test and measurement instruments
Integrated into spectrum analyzers, vector signal generators, and vector network analyzers as wideband modulation/demodulation vector cores, meeting stringent amplitude and phase accuracy requirements for precision measurements.
5. Software-defined radio and coherent communication equipment
Serving as I/Q modulators/demodulators in direct-conversion architectures, working alongside baseband digital signal processing units to enable flexible generation and reception of complex modulated waveforms, representing a critical analog interface in modern agile spectrum management systems.

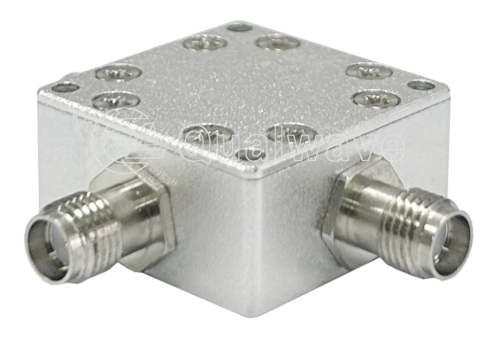

Qualwave supplies low conversion loss and high isolation mixers in a broad range from DC to 110GHz. This article introduces a IQ Mixer with a RF/LO frequency range of 5~11GHz.
1. Electrical Characteristics
RF/LO Frequency: 5~11GHz
LO Input Power: 19dBm typ.
IF Frequency: DC~4GHz
Input P1dB: 17dBm typ.
Conversion Loss (combined): 11dB typ.
IF VSWR: 2 typ.
RF VSWR: 3.5 typ.
LO VSWR: 2.5 typ.
Isolation (LO, RF): 45dB typ.
Isolation (LO, IF): 30dB typ.
Isolation (RF, IF): 30dB typ.
2. Absolute Maximum Ratings*1
RF/IF Input Power: 20dBm
LO Input Power: 27dBm
[1] Permanent damage may occur if any of these limits are exceeded.
3. Mechanical Properties
Size*2: 24*24*12mm
0.945*0.945*0.472in
Connectors: SMA Female
Mounting: 4-Φ2.2mm through-hole
[2] Exclude connectors.

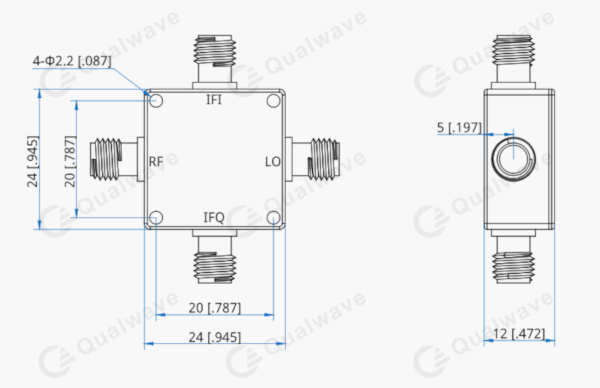

4. Outline Drawings
Unit: mm [in]
Tolerance: ±0.5mm [±0.02in]
5. Environment
Operating Temperature: -40~+85℃
Non-operating Temperature: -55~+125℃
6. How To Order
If you are interested in this product, please feel free to contact us. We are happy to provide more valuable information.
