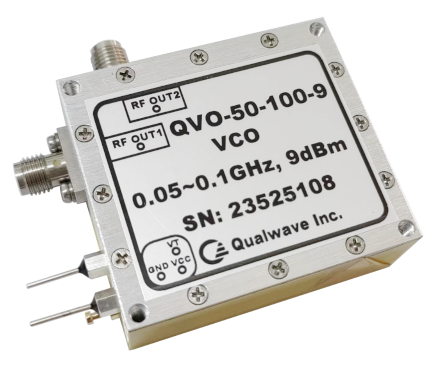

Voltage Controlled Oscillators (VCO), 0.05~0.1GHz, 9dBm

A voltage controlled oscillator (VCO) is a stable and reliable frequency source whose output frequency can be precisely controlled by the input voltage. In short, minor variations in the input voltage can linearly and rapidly alter the oscillator's output frequency. This "voltage-to-frequency control" characteristic makes it a core component in modern communication, radar, testing, and measurement systems.

Features:

1. High power output: With an output power of 9dBm (approximately 8 milliwatts), significantly higher than similar products in the market, it can directly drive subsequent circuits, reduce amplification levels, and simplify system design.
2. Broadband coverage: Continuous tuning range of 0.05~0.1GHz, suitable for various intermediate frequency and baseband processing scenarios.
3. Excellent spectral purity: While achieving high power, low phase noise is maintained to ensure signal quality.

Applications:

1. Communication base station: As a local oscillator source, it enhances signal driving capability, improves base station coverage and signal stability.
2. Testing and measurement equipment: Provides high-power, low-noise local oscillation signals for spectrum analyzers, signal generators, etc., to improve testing accuracy.
3. Radar and navigation system: Ensure signal strength and reliability during rapid frequency switching in high dynamic environments.
4. Research and education: Provide high-quality signal sources for RF circuit experiments and physics research.

Qualwave Inc. provide VCO with frequencies up to 30GHz. Our products are widely used in wireless, transceiver, radar, laboratory testing and other fields. This article introduces a VCO with an output frequency of 50-100MHz and an output power of 9dBm.
