Programmable Attenuator, 0.02~18GHz, Attenuation Range 0~63.75dB, Step 0.25dB

As a key component in microwave test and communication systems, the Programmable Attenuator precisely adjusts microwave signal amplitude by controlling an internal precision resistor network via digital commands. Its core value lies in replacing traditional manual attenuators, providing high-resolution, high-precision automated signal control within a wide frequency band to meet the demands of modern electronic systems for remote operation and fast response. The following is a detailed introduction from two aspects: its core product features and main application areas.

Characteristics:

1. High precision and fine step: This product features a minimum step of 0.25dB, enabling very fine signal amplitude adjustments. The total attenuation range reaches 63.75dB, covering a broad dynamic range from weak to strong signals. Its typical attenuation accuracy can reach ±2dB, ensuring accuracy and repeatability under various settings.
2. Ultra-wideband frequency coverage: The operating frequency extends from 0.02GHz up to 18GHz, covering almost all important communication and radar bands. This wide frequency coverage allows it to handle signals across different bands on a single platform, eliminating the need to switch multiple devices.
3. Low insertion loss and good matching: Its maximum insertion loss is controlled within 8dB, minimizing the consumption of original signal energy. Meanwhile, the maximum voltage standing wave ratio of its input and output ports is 2.0, ensuring good impedance matching with 50Ω systems, effectively reducing signal reflections and guaranteeing signal transmission integrity.
4. Reliable programmable control and structural design: The product supports remote control via standard interfaces, facilitating integration into automated test systems. Some designs also consider environmental adaptability, maintaining stable performance over a wide temperature range.

Applications:

1. Communication system testing: In the R&D and production of 5G base stations, satellite communication ground stations, and radar systems, this attenuator is widely used to simulate signal transmission loss in space.
2. Automated test systems: As a core signal conditioning component in ATE systems, it can precisely control the signal level input to instruments such as spectrum analyzers, signal generators, or power meters. This not only prevents damage to expensive test equipment from excessive signal strength but also ensures measurements are taken at the optimal signal amplitude, thereby improving the dynamic range and measurement accuracy of the entire test system.
3. Component and production line testing: In the mass production testing of RF and microwave components, this device is used to quickly and accurately perform functional verification and performance screening. By automatically varying the input signal strength, the response curve of the device under test under different signal conditions can be efficiently plotted.
4. Research and educational experiments: In microwave laboratories of universities and research institutions, it is a fundamental component for building experimental platforms for channel simulation and wave propagation research, helping researchers simulate complex electromagnetic environments and validate theoretical models and designs.

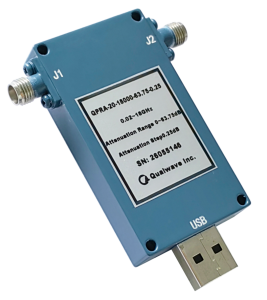

Qualwave Inc. provide broadband, high dynamic range programmable attenuators with frequencies up to 40GHz. The step can reach 0.5dB, and the attenuation range can reach 80dB or higher. This article introduces a 0.02~18GHz programmable attenuator with an attenuation range of 0~63.75dB and a step of 0.25dB.
