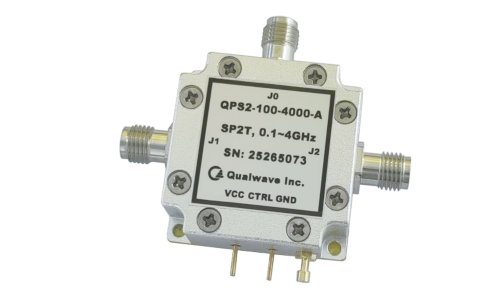

PIN Diode Switch, SPDT, 0.1~4GHz, Absorptive

The SPDT (Single Pole Double Throw) RF switch is a high-performance microwave switch specifically designed for high-frequency signal routing, enabling rapid switching between two independent paths. This product features a low-loss, high-isolation design, making it suitable for demanding applications such as microwave communications, radar, and test measurement, ensuring stable and reliable signal transmission.

Key Advantages:

1. Excellent RF performance
Ultra-low insertion loss: Minimizes signal attenuation and enhances system efficiency.
High isolation: Effectively prevents channel crosstalk, ensuring signal purity.
Wideband support: Covers microwave and millimeter-wave frequencies, suitable for high-frequency applications such as 5G and satellite communications.
2. Fast switching and high reliability
High-speed switching: Meets real-time signal switching requirements for applications like phased array radars and frequency-hopping systems.
Long lifespan: Utilizes high-quality RF relays or solid-state switching technology to ensure long-term stable operation.
Low-power design: Ideal for portable or battery-powered devices.
3. Rugged and durable structural design
Compact packaging: Adapts to high-density PCB layouts.
Wide temperature range: Suitable for extreme environments, such as aerospace and military communications.
High ESD protection: Enhances anti-static interference capability, improving system reliability.

Typical Applications:

1. Microwave communication systems
5G base stations and millimeter-wave communications: Used for antenna switching and MIMO system signal routing.
Satellite communications: Enables low-loss signal switching in L/S/C/Ku/Ka bands.
2. Radar and electronic warfare
Phased array radar: Rapidly switches T/R (Transmit/Receive) channels to improve radar response speed.
Electronic countermeasures: Facilitates dynamic frequency hopping to enhance anti-jamming capabilities.
3. Test and measurement equipment
Vector network analyzers: Automates test port switching to improve calibration efficiency.
Microwave signal sources and spectrum analyzers: Simplifies testing processes with multi-channel signal switching.
4. Aerospace and defense
Airborne/shipborne RF systems: High-reliability designs meet military standards.
Satellite payload switching: Ensures stable operation in space environments, with optional radiation-hardened versions.

Qualwave Inc. provide broadband and highly reliable SP2T PIN diode switches with frequency coverage from DC to 40GHz. This article introduces a SP2T PIN diode switches with frequency coverage of 0.1~4GHz.
