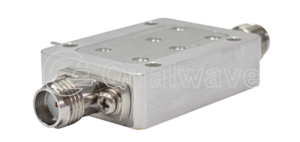

Low Noise Amplifier, 0.02~6GHz, Gain 40dB, NF 1.5dB, With limiter

Qualwave has launched the following broadband low noise amplifiers, with operating frequencies covering 0.02~6GHz. These devices are manufactured using advanced processes, enabling operation across an extremely wide spectral range. The chip integrates a limiter protection circuit internally, specifically designed for RF receive front-ends that require both high sensitivity and high reliability.

Features:

1. Ultra-wideband coverage: Supports the 0.02~6GHz frequency band, compatible with various communication standards such as shortwave, cellular communication, ISM bands, and Wi-Fi 6E.
2. High-gain performance: Provides up to 40dB of gain, significantly amplifying weak signals and simplifying the design of downstream circuits.
3. Low noise figure: With a noise figure as low as 1.5dB, it ensures excellent signal-to-noise ratio and reception sensitivity even with weak signals.
4. Built-in limiter protection: Integrated anti-burnout limiter circuit, capable of withstanding high-power RF input surges, effectively safeguarding downstream components in complex electromagnetic environments.

Applications:

1. Telecom infrastructure: Suitable for 5G Sub-6GHz base stations and repeaters, enhancing the uplink reception sensitivity.
2. Aerospace and defense: Suitable for software-defined radio, electronic reconnaissance, and UAV data links, ensuring stable operation in high-interference environments.
3. Testing, measurement, and general wireless: As a front-end amplification module for broadband instruments and key receiving components for satellite communication terminals and IoT gateways.

Qualwave Inc. provide ultra-wideband low noise amplifiers with frequencies up to 260GHz. This article introduces a low noise amplifier with a gain of 40dB, a noise figure of 1.5dB, and a bandwidth-limited range of 0.02~6GHz.
